Baggage Scanner VMI SPECTRUM 5536 - working with all accesories!
Description

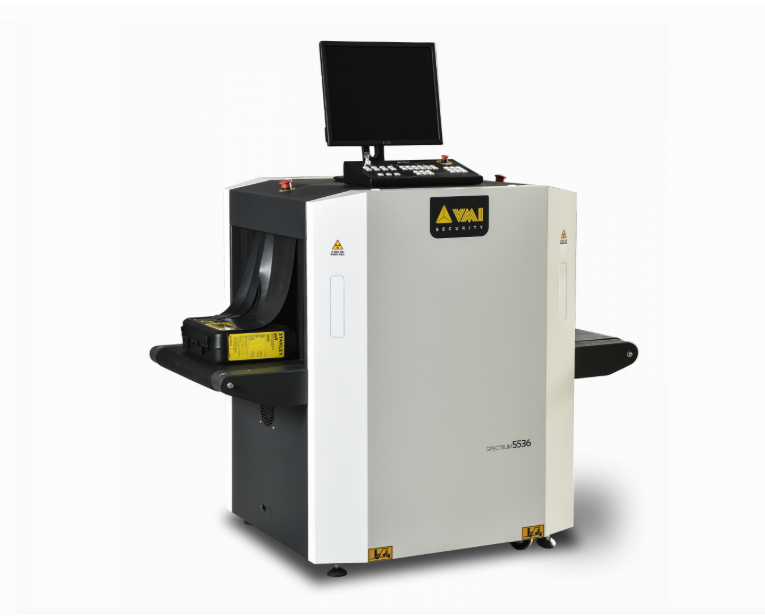

Baggage Scanner VMI SPECTRUM 5536
Condition: USED, Pulled from a working environment and may have signs of wear / scuffs / scratches. All accessories included. See attached video showing these exact units working before we pulled them out. The facility that was using these closed down and we took ownership of these devices at that time. These were used until the very last day the building closed. There is some wear on the buttons of the operator's control panel.
The Spectrum 5536 is a compact, high-performance X-ray baggage scanner designed for environments where space is limited but security cannot be compromised—such as dispatch rooms, school entrances, prisons, courts, and reception lobbies. Despite its reduced footprint, it delivers impressive image quality and reliable detection capabilities
Tunnel & Conveyor Specs
- Tunnel Size: 574 mm (W) × 372 mm (H) / 22.6″ × 14.6″
- Conveyor Height: 654 mm / 25.7″
- Speed: ~0.22 m/s
- Load Capacity: Standard 80 kg (176 lb), with optional 160 kg or 200 kg configurations
Imaging Performance
- Generator: 160 kV (standard; 180 kV available)
- Wire Resolution: 40 AWG for fine detail clarity
- Steel Penetration: Up to 42 mm at 150 kV or 44 mm at 170 kV
- Monitor: High-resolution display for detailed viewing
Quality & Analysis Features
- Color Material Differentiation: Organic, inorganic, and mixed materials are automatically color-coded
- Zoom: Up to 128× zoom for close-up view
- Continuous Real‑Time Scanning: Includes image manipulation, inversion, and edge highlight tools
- Algorithmic Threat Detection: Identifies drugs, explosives, and high-density materials
- TIP Functionality: Threat image projection aids operator training
- Image Storage & Export: Supports up to 200,000+ images and exports in JPG, TIFF, or BMP formats
Operational & Safety Features
- Self‑Diagnosis System: Built-in diagnostics alerts operators to maintenance needs
- Baggage Counter: Automatically tracks scanned items
- Safety Shielding: Radiation levels under 1 µSv/h at 0.1 m—well within safety standards
- Network Integration: Export data via network or USB; Wi‑Fi optional
- Add‑Ons: Options include modular roller table, conveyor system integration, CCTV, UPS, and compatibility with ONVIF/matching security portals
Physical & Environmental Details
- Overall Dimensions: 1,447 mm (L) × 824 mm (W) × 1,198 mm (H) / 56.9″ × 32.4″ × 47.2″
- Weight: Approx. 340 kg (750 lb)
- Temperature & Humidity: Operates in 0 °C to 40 °C, 5–95% RH (non-condensing); stores in –40 °C to 60 °C
- Power: Dual voltage support (110–127 VAC or 208–240 VAC @50/60 Hz), ~740 VA consumption
Ideal Applications
- Best suited for entry-level inspection in:
- Government and judicial buildings (prisons, courts)
- Educational facilities and mailrooms
- Corporate entrances or dispatch operations
- Security checkpoints needing high image quality in a compact footprint
The Spectrum 5536 delivers powerful performance in a compact package—ideal for sensitive or space-constrained environments. With its sharp imaging, advanced threat detection, operator training tools, and robust safety features, it ensures both efficiency and security without compromise.
