Cisco C9500-40X-A 40-Port 10G Switch SEALED
Description
Cisco C9500-40X-A 40-Port 10G Switch SEALED.

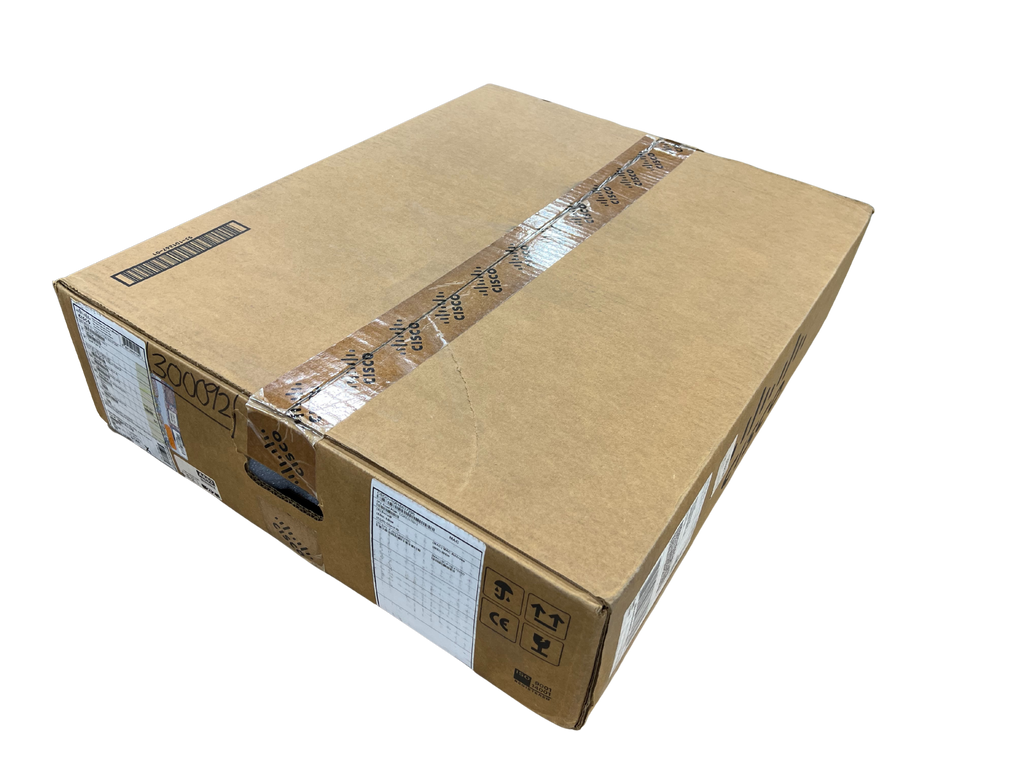

Condition: NEW, SEALED brand-new, unused, undamaged, item in its original packaging. Packaging is the same as what is found in a retail store. All accessories included
Overview & Use Case
Part of Cisco’s Catalyst 9500 Series, designed for enterprise core and campus distribution deployments, delivering high-performance and security with programmability and IoT/cloud readiness
The C9500‑40X‑A is the 40‑port model featuring 10 Gbps SFP+ interfaces and running the Network Advantage license by default (indicated by the “‑A” suffix)
Hardware Specifications
- Ports: 40× 10 Gigabit Ethernet SFP+ front-panel ports.
- Optional uplinks: Supports Cisco network modules:
- C9500‑NM‑8X (8× 1/10 Gb SFP+ ports)
- C9500‑NM‑2Q (2× 40 Gb QSFP+)
- Switching capacity: Up to 960 Gbps full duplex, forwarding rate up to 720 Mpps
- Memory & CPU: Built on an Intel‑based 4‑core x86 CPU (~2.4 GHz), 4 GB DDR2 RAM, 16 GB Flash storage (some sources list 16 GB DDR4 memory, likely for firmware and buffering)
- ASIC: Dual UADP 2.0 XL ASICs underpin high-density, low-latency forwarding and support up to ~32,000 hardware adjacencies (directly connected clients/routes)
Physical & Environmental Specs
- Form Factor: 1 RU rack‑mount chassis.
- Dimensions: ~1.73″ × 17.5″ × 21.5″ and weight of ~23.6 lb (10.7 kg) fully loaded
- Power: Comes standard with one 950 W AC power supply (PWR‑C4‑950WAC‑R), upgradable to 1.6 kW AC or DC for redundancy. System draws about 850 W max under full load
- Cooling: Five front-to-back variable-speed fan modules with Online Insertion and Removal (OIR) support, capable of operating with a single-fan failure
Performance & Scale
- MAC table size: ~64,000 entries.
- Routing scale: Capable of handling large enterprise tables (MAC, IP unicast/multicast routes, MPLS labels) with Cisco’s UADP ASIC and deep buffering
- Adjacency scale: Supports up to ~32,000 hardware adjacencies, ideal for SD‑Access and leaf-spine topologies with many direct endpoints
Features & Software
- Operating System: Ships with Cisco IOS‑XE (minimum version 16.6.1a, often requiring 16.8.x or later)
- Licensing: Network Advantage license enables advanced features: BGP, MPLS (L2/L3 VPN), MVPN, NAT, Cisco SD‑Access, VRF‑aware LISP, StackWise‑Virtual, and advanced QoS/security capabilities
- High Availability: Redundant power supplies, NSF/SSO stateful failover, hot-swappable fans, and SSD storage support (in C9500X models)
We offer:
- Free Ground Shipping to the continental USA
- 30-day DOA Warranty
- Product professionally packed
- Blind Shipping on request
If you have any issues, please contact us before leaving feedback Our goal is to always provide 5-star customer service. If you are not fully satisfied with the product you receive or our service, please contact us and we will strive to meet your expectations.
If a return is necessary, please initiate a return through eBay’s return system and we will issue you a refund upon our receiving and inspecting the item. Items must be returned in the same condition in which they were sold. New items must have tags still attached. To be eligible for a return, the return must be initiated and the item postmarked within 30 days of your receiving the item.
