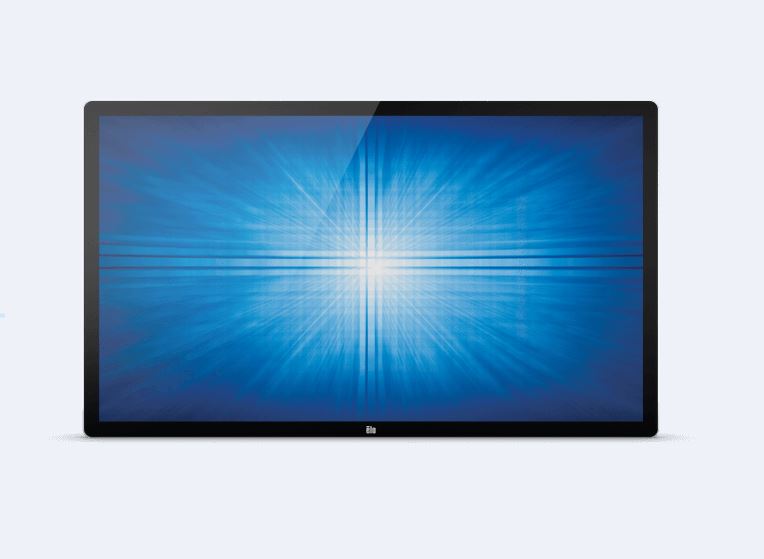

Elo 4602L Touchscreen Signage Display E222373 NEW

Elo 4602L Touchscreen Signage Display E222373 NEW

$1,799.00

Sold Out

Description

Condition: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging such as an unprinted box or plastic bag. Box may have been opened for verification purposes


Part Number(s)

TouchPro PCAP (clear with anti-friction) - E222373

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 12 Touch
Infrared - 20 Touch

Touch Interfaces

USB

Diagonal Size

46'' diagonal, Active matrix TFT LCD (LED)

Active Area (mm)

40.08" x 22.55" / 1018.08mm x 572.67mm

Aspect Ratio

16:9

Resolution

1920 x 1080 @ 60hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 500 nits
IR: 450
PCAP: 430 nits

Response Time-total (typical)

6.5 msec

Contrast Ratio

4000:1

I/O Ports

Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
Output: Audio Headphones out, RJ45 (for optional OSD remote)

Input Video Frequency

Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz

Audio Input Connector

3.5 mm TRS jack

Audio Input Signal Range

1Vrms max stereo signal (standard PC line out)

Headphone Output Connector

3.5 mm TRS jack

Speakers

4 x 5 W stereo speakers

Power Supply

AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080

Input Connector

IEC 60320 C6

Input Voltage

100 - 240 VAC 50/60Hz

Maximum Operating Time

24 hours/day

Power Consumption (Typical)

Monitor Only
(Typical at 120V at 60Hz): ON: 95.0 W; SLEEP: 8.7 W; OFF: 2.5 W
(Typical at 230V at 50Hz): ON: 96.0 W; SLEEP: 8.0 W; OFF: 2.8 W

Monitor with ECMG3
(Typical at 120V at 60Hz): ON: 106 W; SLEEP: 11.3 W; OFF: 11.0 W
(Typical at 230V at 50Hz): ON: 107.0 W; SLEEP: 11.2 W; OFF: 11.0 W

Dimensions

PCAP: 42.63" x 25.09" x 2.02" / 1082.8mm x 637.4mm x 51.3mm

Shipping Box Dimensions

48.03" x 8.27" x 29.53" / 1220mm x 210mm x 750mm

Weight (Unpackaged)

PCAP
With ECMG3: 59.55 lbs / 27.01 Kg
Without ECMG3: 52.93 lbs / 24.01 Kg

Weight (Packaged)

PCAP
Without ECMG3: 68.10 lbs / 30.89 Kg

Operating Temperature

Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

Mounting Options

VESA mount per MIS-F, 400, 400, 6MM

Sealability

Touchscreen sealed to bezel
Touchscreen sealed to LCD

MTBF

50,000 hours

Typically ships within 48 hours
