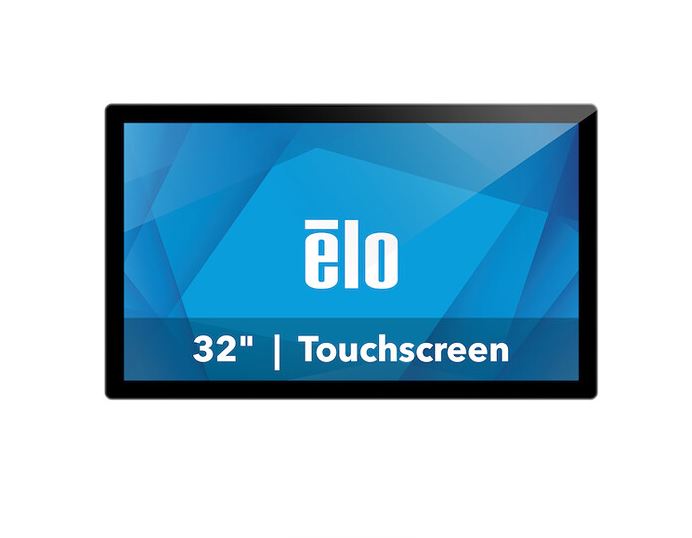

Elo E222368 Interactive Digital Signage ET3202L Flat Panel Touchscreen Display

Elo E222368 Interactive Digital Signage ET3202L Flat Panel Touchscreen Display

$1,100.00

Sold Out

Description

Elo 3202L Touchscreen Signage Display

Condition: NEW, brand-new, unused, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. Box may be opened for verification purposes

Part Number(s)

Infrared (clear) - E222368

Enclosure Color

Black

Touch Technology & Capacity

Infrared - 20 Touch

Touch Interfaces

USB

Diagonal Size

31.5'' diagonal, Active matrix TFT LCD (LED)

Active Area (mm)

27.49" x 15.47" / 698.4mm x 392.9mm

Aspect Ratio

16:9

Resolution

1920 x 1080 @ 60hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 500 nits
IR: 450 nits

Response Time-total (typical)

8 msec

Contrast Ratio

3000:1

I/O Ports

Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
Output: Audio Headphones out, RJ45 (for optional OSD remote)

Input Video Frequency

Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz

Audio Input Connector

3.5 mm TRS jack

Audio Input Signal Range

1Vrms max stereo signal (standard PC line out)

Headphone Output Connector

3.5 mm TRS jack

Speakers

4 x 5 W stereo speakers

Power Supply

AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080

Input Connector

IEC 60320 C6

Input Voltage

100 - 240 VAC 50/60Hz

Maximum Operating Time

24 hours/day

Power Consumption (Typical)

Monitor Only
(Typical at 120V at 60Hz): ON: 55.0 W; SLEEP: 9.0 W; OFF: 2.0 W
(Typical at 230V at 50Hz): ON: 53.0 W; SLEEP: 9.0 W; OFF: 2.5 W

Monitor with ECMG3
(Typical at 120V at 60Hz): ON: 62.0 W; SLEEP: 12.0 W; OFF: 11.0 W
(Typical at 230V at 50Hz): ON: 63.0 W; SLEEP: 11.0 W; OFF: 12.0 W

Dimensions

I30.03" x 18.00" x 2.43" / 762.8mm x 457.3mm x 61.6mm

Shipping Box Dimensions

34.84" x 7.87" x 22.83" / 885mm x 200mm x 580mm

Weight (Unpackaged)

With ECMG3: 35.83 lbs / 16.25 Kg
Without ECMG3: 29.21 lbs / 13.25 Kg

Weight (Packaged)

Without ECMG3: 39.88 lbs / 18.09 Kg

Operating Temperature

Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

Mounting Options

VESA mount per MIS-F, 400, 400, 6MM

Sealability

Touchscreen sealed to bezel
Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated



Typically ships within 48 hours
