Elo E222368 Interactive Digital Signage ET3202L Flat Panel Touchscreen Display

Elo E222368 Interactive Digital Signage ET3202L Flat Panel Touchscreen Display

$775.75

Sold Out

Description

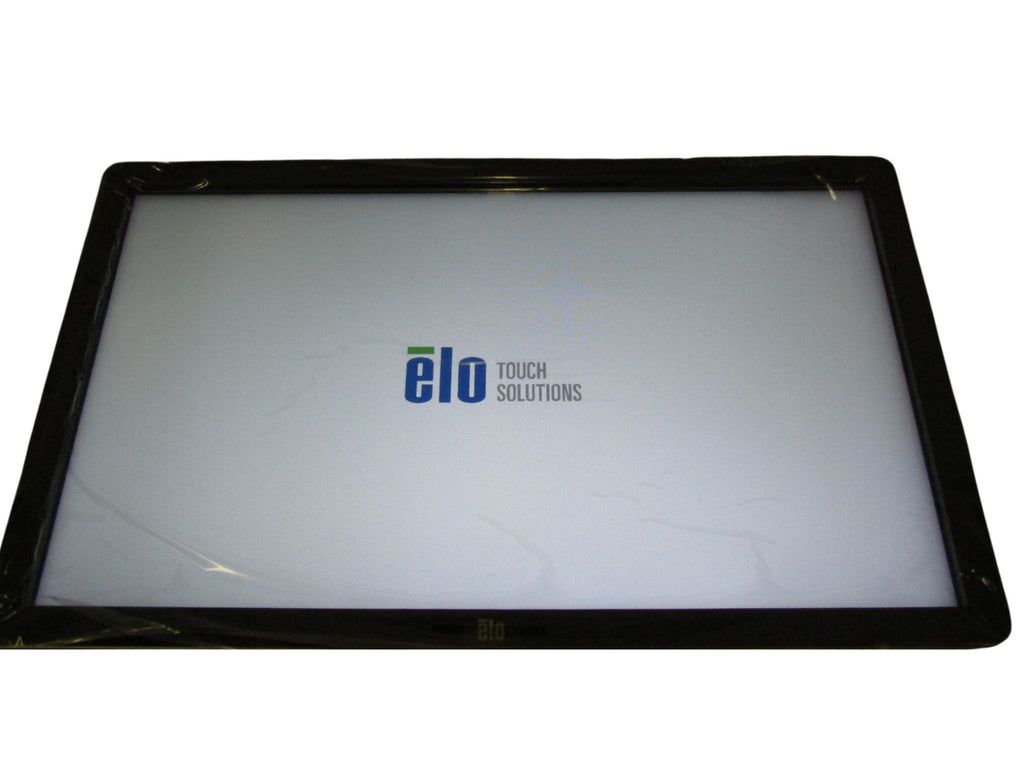

Elo 3202L Touchscreen Signage Display

Condition: “Seller Refurbished: Used in great working condition. Fully tested and refurbished by our team of technicians and confirmed fully functional. Unit may have scratches, scuffs, dings, and general signs of use. Pictures are representative of the item, but may not be exact unit received. Power cord included. May be in in original box.”

Part Number(s)

Infrared (clear) - E222368

Enclosure Color

Black

Touch Technology & Capacity

Infrared - 20 Touch

Touch Interfaces

USB

Diagonal Size

31.5'' diagonal, Active matrix TFT LCD (LED)

Active Area (mm)

27.49" x 15.47" / 698.4mm x 392.9mm

Aspect Ratio

16:9

Resolution

1920 x 1080 @ 60hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 500 nits
IR: 450 nits

Response Time-total (typical)

8 msec

Contrast Ratio

3000:1

I/O Ports

Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
Output: Audio Headphones out, RJ45 (for optional OSD remote)

Input Video Frequency

Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz

Audio Input Connector

3.5 mm TRS jack

Audio Input Signal Range

1Vrms max stereo signal (standard PC line out)

Headphone Output Connector

3.5 mm TRS jack

Speakers

4 x 5 W stereo speakers

Power Supply

AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080

Input Connector

IEC 60320 C6

Input Voltage

100 - 240 VAC 50/60Hz

Maximum Operating Time

24 hours/day

Power Consumption (Typical)

Monitor Only
(Typical at 120V at 60Hz): ON: 55.0 W; SLEEP: 9.0 W; OFF: 2.0 W
(Typical at 230V at 50Hz): ON: 53.0 W; SLEEP: 9.0 W; OFF: 2.5 W

Monitor with ECMG3
(Typical at 120V at 60Hz): ON: 62.0 W; SLEEP: 12.0 W; OFF: 11.0 W
(Typical at 230V at 50Hz): ON: 63.0 W; SLEEP: 11.0 W; OFF: 12.0 W

Dimensions

I30.03" x 18.00" x 2.43" / 762.8mm x 457.3mm x 61.6mm

Shipping Box Dimensions

34.84" x 7.87" x 22.83" / 885mm x 200mm x 580mm

Weight (Unpackaged)

With ECMG3: 35.83 lbs / 16.25 Kg
Without ECMG3: 29.21 lbs / 13.25 Kg

Weight (Packaged)

Without ECMG3: 39.88 lbs / 18.09 Kg

Operating Temperature

Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

Mounting Options

VESA mount per MIS-F, 400, 400, 6MM

Sealability

Touchscreen sealed to bezel
Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated



Typically ships within 48 hours
