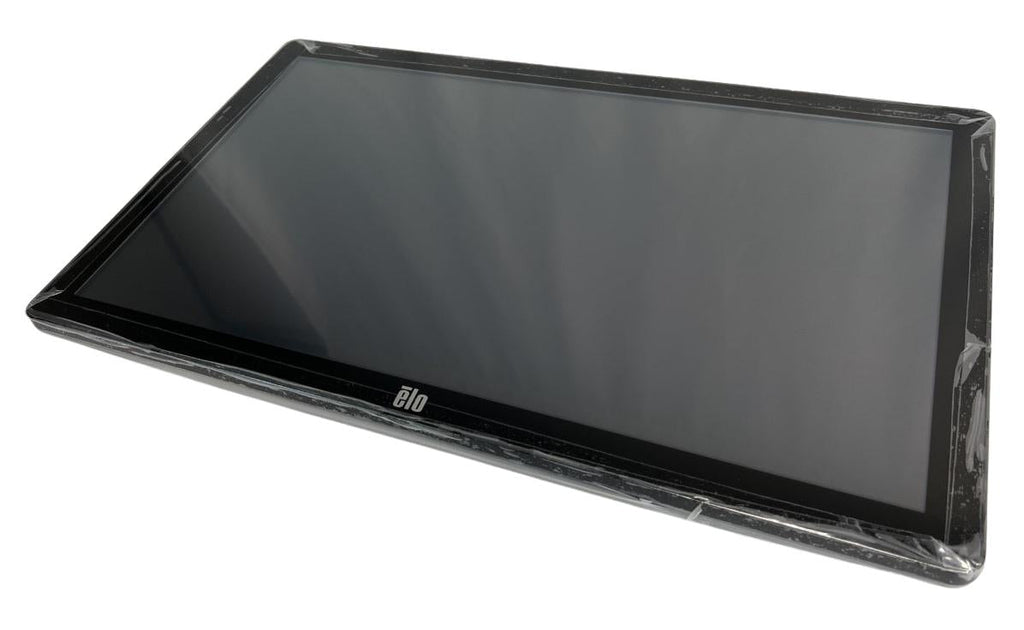

Elo EloPOS 22" AiO Touch Computer EPS22H5 i5-8500t 8GB 128GB E938113

Elo EloPOS 22" AiO Touch Computer EPS22H5 i5-8500t 8GB 128GB E938113

$650.00

Sold Out

Description

Elo EloPOS 22" AiO Touch Computer i5-8500t 8GB 128GB E938113 AC Adapter not included


Condition: USED in great working condition. Fully tested and confirmed fully functional. Unit is used and may have scratches, scuffs, dings, and general signs of use. Pictures are representative of the item, but may not be exact unit received. Not in original box. AC ADAPTER NOT INCLUDED

We offer:
  • 14-day DOA Warranty.
  • Product professionally packed.
  • Blind Shipping on request.
  •  All sales are final. NO RETURNS ARE ACCEPTED BY SELLER unless there is a defect in the product.
Please contact us if you feel you received a defective product. Please contact us through the eBay message service and allow at least 1 business day for a response. Business Hours Monday to Friday (9:00 AM to 5:00 PM-Eastern Time) Closed on Holidays and Weekends

Specifications

  • Part Number(s)

    i5, 8GB RAM, 128GB SSD with Wall Mount & I/O Hub - E938113

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    i5 Models: Intel® Core™ i5-8500T Processor (9M Smart Cache, up to 3.50 GHz by Intel® Turbo Boost Technology 2.0) Intel® vPro Support

    Chipset

    i5 Models: Intel Q370 Express

    Graphics

    i5 Models: Intel UHD Graphics 630

    BIOS

    AMI

    Memory (RAM)

    i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

    NOTE: Check brand of the memory included in your unit before purchasing the memory kit.

    Storage

    128GB M.2 SATA SSD, 80 TBW
    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    TPM

    2.0

    Active Management Technology (AMT)

    i5 Models: Active Management Technology (Intel® AMT 11.0) Support.

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area (mm)

    18.74" x 10.54" / 476.1 mm x 267.8 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 250 nits
    PCAP: 212.5 nits

    Response Time-total (typical)

    14 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    USB Ports

    3 x USB 3.0 (1 on display head, 2 on I/O)
    2 x USB 2.0 (on I/O)
    4 x Micro USB 2.0 (on display head)

    Powered USB

    1 x 24V on I/O
    2 x 12V on I/O

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Serial Ports

    2 x RJ45

    Cash Drawer Port

    12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

    Wireless

    Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

    Bluetooth

    Bluetooth 5.0

    Additional Video Out

    1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

    Audio Ports

    1 x 3.5 mm headset jack

    Speakers

    2 x 2W internal speakers

    OS

    Windows 10 IoT Enterprise LTSC 64-bit

    Languages

    Windows 10 - 36 Language groups

    Power Supply

    External 24VDC universal-type power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 180W

    Power Consumption (Typical)

    i5: 81 W


    Weight (Unpackaged)

    Without Stand: 13.2 lbs / 6 kg

    Weight (Packaged)

    Without Stand: 18.5 lbs / 8.4 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95% (38.7℃ max wet bulb temperature)

    Energy Star

    Energy Star 7.1

    Regulatory approvals and declarations

    UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

    Real-Time Clock

    CR2032 lithium metal battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75mm or 100mm VESA mount


    Power Cables

    North American power cable

    Other Features

    Serviceable internal components.
    Models with a stand for desktop application.
    Models without a stand for 75mm VESA mounting.
    Kensington lock.

    What's in the Box

    EloPOS System
    North America Power Cord
    Power Adapter – 180W

Typically ships within 48 hours
