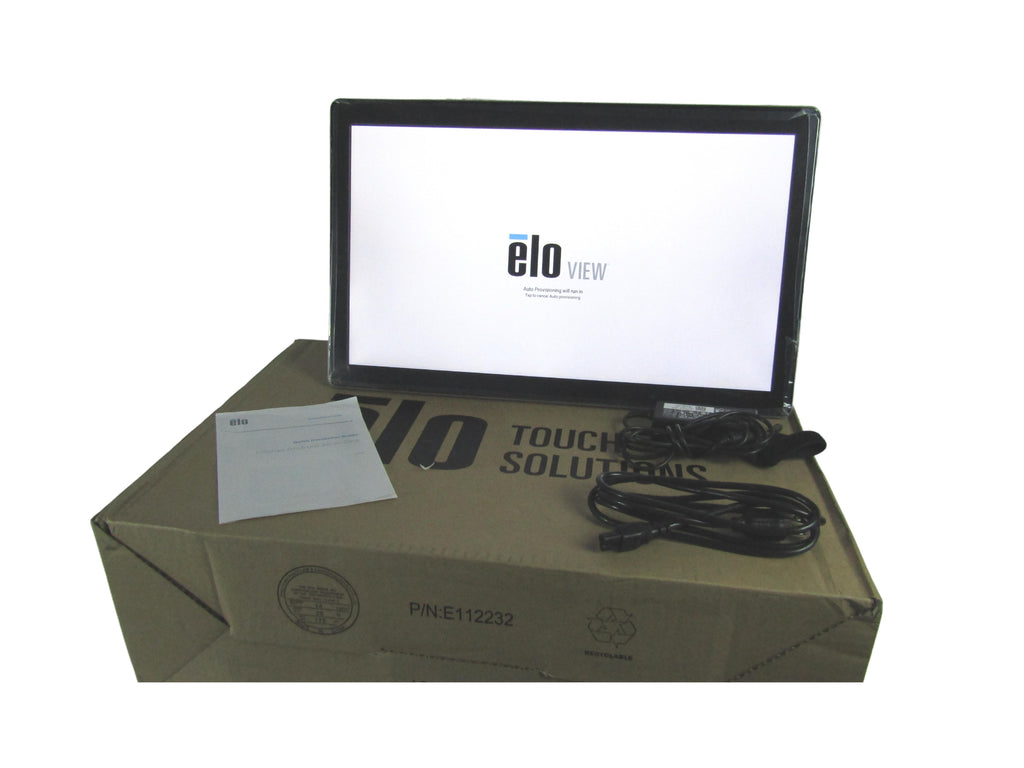

ELO ESY22I1B All in One Touch PC E611675 I-Series 2.0 Android 22" Touchscreen

ELO ESY22I1B All in One Touch PC E611675 I-Series 2.0 Android 22" Touchscreen

$699.75

Sold Out

Description

ELO ESY22I1 All in One Touch PC E611675 I-Series 2.0 Android 22" Touchscreen

The Elo 22" I-Series for Android with Android Open Source (2.0) is one of the most versatile product lines on the market. The AiO solution offers a variety of mounting options and delivers flexibility for the rigors of continuous public use for in-store interaction, point of sale, self-service, price-checker, wayfinding, corporate and hospitality environments.

Specifications

Part Number(s)

PCAP Black (Worldwide) - E611675

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Qualcomm® Snapdragon™ APQ8053 2.0GHz Octa-Core Processor

Memory (RAM)

3GB DDR3L

Storage

32GB SSD

OS

Android 7.1 with EloView content deployment and management

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area (mm)

18.74" x 10.54" / 476mm x 268mm

Resolution

Full HD 1920 x 1080 @ 60Hz

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 250 nits
TouchPro PCAP: 215 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

I/O Ports

Micro HDMI output
Micro SD slot
Ethernet 1x LAN (Gigabit)
GPIO
1x USB 3.0 support

Peripheral Mounting

4x microUSB side ports available

Webcam

Auto exposure
Auto Gain Control
Sharpness/Brightness/Contrast control
Max resolution: 1920 x 1080 30fps

Wireless

802.11b/g/n/ac + Bluetooth 4.1

Audio Ports

Built-in microphone
Microphone and headphone support is available via an optional the USB adaptor (Vantech NBA-120U)

Speakers

Two 2W internal speakers

Power Supply

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box - E514304)

Power Consumption (Typical)

ON: 16W
OFF: 0.5W
SLEEP: 4.0W

Dimensions

12.75" x 20.63" x 1.39" / 323.9mm x 523.9mm x 35.2mm

Weight (Unpackaged)

9.47 lbs / 4.30kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 50°C / -4°F to 122°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95%

Regulatory approvals and declarations



UL/cUL, FCC (US)
IC (Canada)
CE (Europe)
CB (International)
CCC, SRRC, China RoHS (China),
VCCI, MIC (Japan)
RCM (Australia)
KCC (Korea)
NOM (Mexico)
BIS (India)
ANATEL (Brazil)
BSMI (Taiwan)
EAC (Russia)

Real-Time Clock

lithium coin cell battery

MTBF

50,000 hours demonstrated

Mounting Options

VESA 100mm x 100mm

Seal ability

Touchscreen sealed to LCD

Power Cables

North American
European

What's in the Box

I-Series 2.0 AiO
North American Power Cable
European Power Cable
1x Power Brick
Screws for cable cover door (located in the power/Ethernet Bay)

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Fingerprint Scanner – Elo P/N: E134286
GPIO Cable - Elo P/N: E211544
2D Barcode Scanner (SE4720) – Elo P/N: E384627
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
POE Module Kit - Elo P/N: E615169
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
Temperature Sensor Pro – Elo P/N: E534879
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Wall Mount Kit (low profile) – Elo P/N: E802400 (Not compatible with POE installed)
Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Expansion Module - Short Cable Kit - Mounted on the back of the I-Series - Elo P/N: E412240
Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
