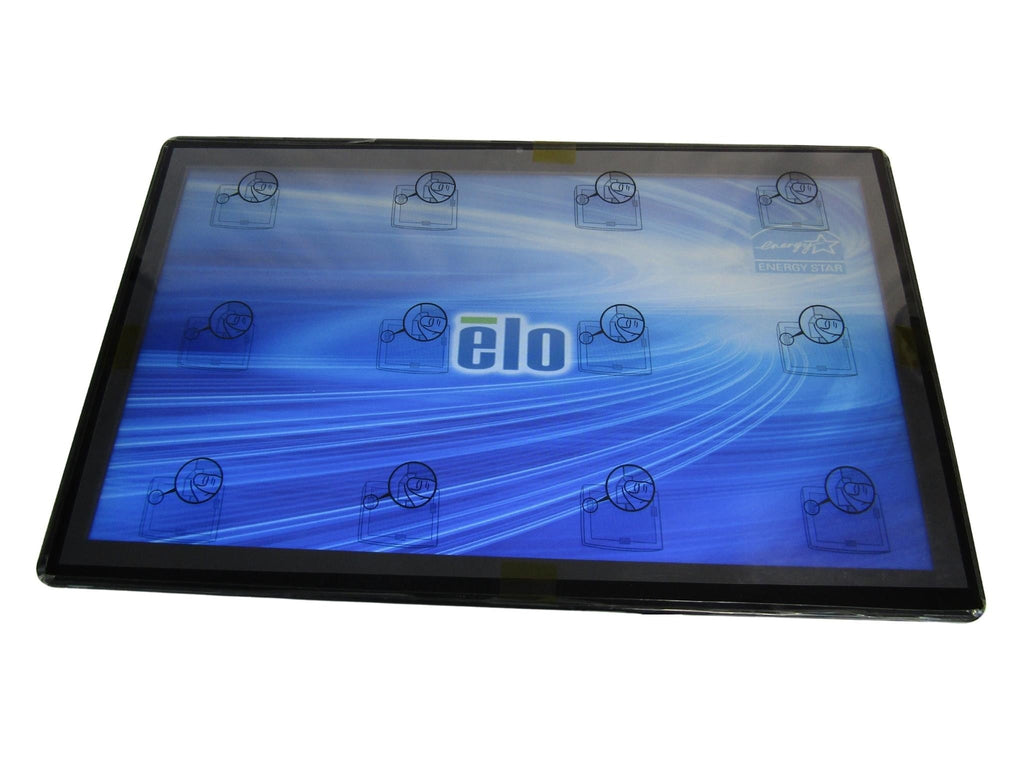

Elo ESY22i5 I-series 22'' Interactive Touchscreen - Display E612054

Elo ESY22i5 I-series 22'' Interactive Touchscreen - Display E612054

$925.00

Sold Out

Description

Part Number

E612054

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch.

Processor

i5: Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor; 6MB Smart Cache

Graphics

i5: Intel HD Graphics 530

BIOS

AMI

Memory (RAM)

i5: 4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
NOTE: Maximum memory using 2 available slots; Replaceable up to 16GB maximum, SODIMM DDR4-2133

Storage

128GB 2.5" 7mm SATA SSD, 72 TBW

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

On-Screen Display (OSD)

Power, Brightness Up, Brightness Down, Volume Up, Volume Down

Aspect Ratio

16:9

Active Area (mm)

18.6" x 10.5" / 476mm x 267.8mm

Resolution

Full HD 1920 x 1080 @ 60Hz

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 250 nits
PCAP: 225 nits

Response Time-total (typical)

30 msec

Contrast Ratio

3000:1

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

AV Capability

Front-facing HD webcam
Stereo speakers

Webcam

Max resolution: 1920 x 1080 30fps (MJPEG)
Auto Focus @ 10cm ~ Infinity
Automatic Exposure Control
Automatic White Balance Control
Automatic Gain Control

USB Ports

i5: 4 x USB 3.0, 3 x Micro USB for Elo peripherals

Ethernet Port

1 x LAN RJ45 (Gigabit)

Wireless

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth

Bluetooth 4.0

Additional Video Out

2nd Micro HDMI out

Audio Ports

1 x 3.5mm line out

Speakers

Two 2W internal speakers

OS

Windows 7*

Languages

Windows 7 - 35 Language groups

Power

Maximum output power: 90W (Max Draw: 100W)
Maximum output power: 150W (Max Draw: 170W)

Power Supply

External 19VDC universal-type power supply brick

Input Voltage

100 - 240 VAC 50/60Hz

Power Consumption (Typical)

i5: 90.63 W

Dimensions

20.6" x 12.76" x 1.8" / 524mm x 324mm x 45mm

Shipping Box Dimensions

26.97" x 19.41" x 7.09" / 685mm x 493mm x 180mm

Weight (Unpackaged)

12.05 lbs / 5.47 kg

Weight (Packaged)

17.65 lbs / 8.03 kg

Operating Temperature

0°C to 35°C / 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95%

Regulatory approvals and declarations

UL/cUL, FCC, TUV, CB, CE, VCCI

Real-Time Clock

lithium-ion battery

MTBF

50,000 hours demonstrated

Mounting Options

VESA - 75mm x 75mm and 100mm x 100mm
Wall/pole mount or secure base to tabletop/desktop


Sealability

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Power Cables

Power Cables: North American power cable included; Other regions available upon request

What's in the Box

Windows I-Series Touchcomputer
US Power Cable
European Power Cable
Power Adapter
Quick Install Guide

Upgrade Options

320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

Replacement DC Power Supply

i5 - 19V DC power brick (150W)

Optional PCAP Stylus Pen

E066148

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Barcode Reader (BCR) – Elo P/N: E093433
GPIO Cable - Elo P/N: E211544
Kit - USB Expansion Module – Elo P/N: E990645
2D Barcode Scanner – Elo P/N: E926356
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

Stands, Mounts & Kits

Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Wall Mount Bracket for 15'' & 22'' I-Series (75mm or 100mm VESA) - Elo P/N: E143088
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260



Condition: NEW A brand-new, unused, undamaged item in its original packaging. Packaging is the same as what is found in a retail store, box may have been opened for verification purposes. Original Box.

We offer:

  • Free Ground Shipping to the continental USA
  • 14-day DOA Warranty
  • Product professionally packed
  • Blind Shipping on request

All sales are final. NO RETURNS ARE ACCEPTED BY SELLER unless there is a defect in the product. Please contact us if you feel you received a defective product. Please contact us through the eBay message service and allow at least 1 business day for a response. Business Hours Monday to Friday (9:00 AM to 5:00 PM-Eastern Time) Closed on Holidays and Weekends

Typically ships within 48 hours
