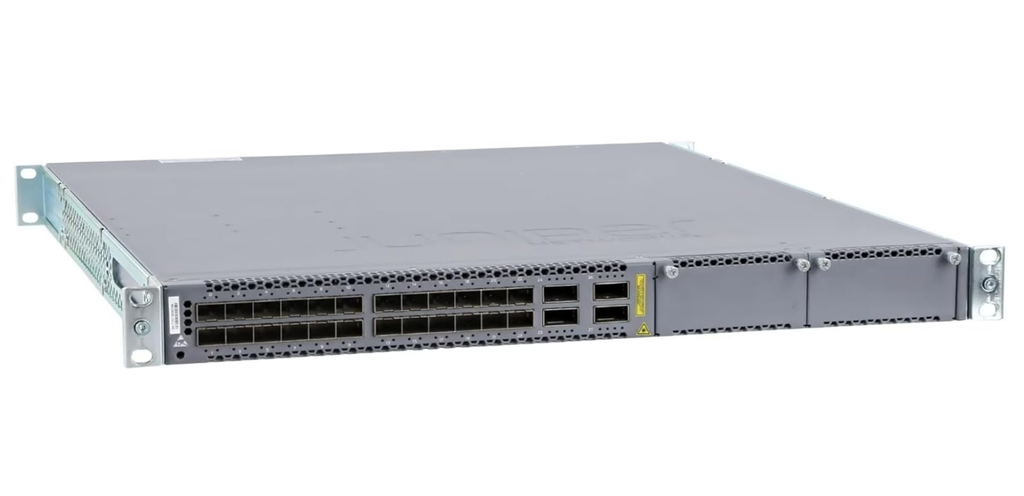

Juniper EX4600-40F-AFI 24 Port Switch W Dual Power 650-064288
Description
Juniper EX4600-40F-AFI 24 Port Switch W Dual Power 650-064288
Condition: USED, in great working condition. Fully tested and confirmed fully functional. Unit is used and may have scratches, scuffs, dings, and general signs of use. Pictures are representative of the item, but may not be exact unit received. Not in original box.
High‑performance 1 RU Ethernet switch ideal for data center and enterprise environments:
Overview & Key Model Information
- Model / Part Number: EX4600‑40F‑AFI, Juniper p/n 650‑064288
- Airflow Option: Back‑to‑Front airflow (AFI)
- Hardware & Port Configuration
Port Density:
- 24 × 10 GbE SFP+ ports (SFP/SFP+ compatible)
- 4 × 40 GbE QSFP+ ports
- Expansion Slots: 2 module slots – optional modules include
- 8‑port SFP/SFP+ module (EX4600‑EM‑8F)
- 4‑port QSFP+ module (QFX‑EM‑4Q)
Management Ports:
- 1 × RJ‑45 console
- 1 × 1 GbE RJ‑45 management
- 1 × 1 GbE SFP management
- 1 × USB port
Performance & Architecture
- Switching Capacity: 1.44 Tbps
- Forwarding Rate: ~1.07 billion packets per second (Bpps)
- MAC Address Table: Up to ~288,000 entries
- Routing & Switching: Full L2/L3 feature set including LAG, ECMP, NSB/NSR, VRF, MPLS VPNs
High Availability & Scale
- Virtual Chassis Support: Combine up to 10 EX4600 units (or mixed with EX4300) into a single logical device managed under one IP
- MC-LAG Support: Active/active multi-chassis Link Aggregation for resilience without Spanning Tree Protocol
Redundancy Features:
- Dual hot-swappable 650 W AC power supplies (JPSU‑650W‑AC‑AFI)
- Hot-swappable fan modules (usually 5 × QFX5100‑FAN‑AFI)
Physical Characteristics
- Form Factor: 1U rackmount
- Dimensions: ~1.72″ H × 17.36″ W × 20.48″ D (~4.3 cm × 44.1 cm × 52.0 cm)
- Weight (with PS & fans): ~21.7 lb (~9.8 kg)
Management & Software
- Operating System: Junos OS
Management Tools:
- CLI, SSH/Telnet, SNMP v1/v2/v3, sFlow v5, RMON, QoS control
- Junos Space Network Director
- Juniper Mist Wired Assurance (AI-powered cloud-based management)
Typical Use Cases
- Top-of-Rack (ToR) in small to medium data centers
- Campus distribution layer, especially in building or department cores
- Enterprise core / aggregation with 10 GbE and 40 GbE uplinks
- Great for networks transitioning from 1 GbE to 10 GbE, especially using mixed EX4300/EX4600 Virtual Chassis deployments
